TC

TO-5 Cold Weld

8MHz-200MHz

9.73D x 6.73H (mm)

Rugged Mount
3-pin

TR

TO-5 Resistance Weld

8MHz-200MHz

9.73D x 6.73H (mm)

Rugged Mount
3-pin
Fund to 5OT

TS

TO-8 Cold Weld

3MHz-100MHz

15.75D x 3.93H mm
15.75D x 6.73H mm

Rugged Mount
5-pin
Fund to 5OT

C2

SMD Seam Welded

32.0kHz to 40.0kHz

3.2 x 1.5 x 0.9mm

Tuning Fork
Rugged 2-pad package
Fund to 5OT

C3

SMD Seam Welded

12MHz-150MHz

3.2 x 2.5 x 0.8 mm

Small Footprint
Fund to 3OT
Fund to 5OT

C5

SMD Seam Welded

8MHz to 125MHz

5.0 x 3.2 x 0.9 mm

4-pad or 2-pad
Fund to 3OT

C6

SMD Seam Welded

8MHz to 110MHz

6.0 x 3.5 x 1.1 mm

4-pad or 2-pad
Fund to 3OT

C7

SMD Seam Welded

5.5MHz - 110MHz

7.0 x 5.0 x 1.3 mm

4-pad
Fund to 3OT

CS

SMD Seam Welded

24MHz-60MHz

2.0 x 1.6 x 0.6 mm

Small Footprint

CX

SMD Seam Welded

16MHz - 60MHz

2.5 x 2.0 x 0.7 mm

Small Footprint

L1 (LP9000)

HC49S Resistance Weld

4MHz-100MHz

11.4 x 4.7 x 3.2 mm

SMD or thru hole
Low Profile

L2 (LP9000)

HC49S Resistance Weld

3.6MHz-100MHz

11.4 x 4.7 x 3.45 mm

SMD or thru hole
Low Profile

L3 (LP9000)

HC49S Resistance Weld

3.6MHz-100MHz

11.4 x 4.7 x 4.0 mm

SMD or thru hole
Low Profile

L4 (LP9000)
Standard

HC49S Resistance Weld

3.2 MHz to 100 MHz

11.4 x 4.7 x 4.5 mm

SMD or thru hole
Low Profile

S8

SMD Resistance Weld

8MHz-200MHz

8.0 x 8.0 x 2.45 mm

Rugged 4-point mount

CR101/U

Thru-Hole

7 MHz to 20 MHz

10.67 x 6.73mm

TO-5

CR106/U

Thru-Hole

10.5MHz to 11.5 MHz

11.05 x 4.65 x 13.46mm

HC-49

CR117/U

Thru-Hole

30MHz to 61 MHz

11.05 x 4.65 x 13.46mm

HC-50

CR119/U

Thru-Hole

2.25MHz to 20 MHz

19.23 x 8.95 x 19.70mm

HC-48

CR125/U

Thru-Hole

2.25MHz to 3.05 MHz

19.23 x 8.95 x 19.70mm

HC-48

CR130/U

Thru-Hole

2.25MHz to 20 MHz

19.23 x 8.95 x 19.70mm

HC-48

CR139/U

Thru-Hole

20MHz to 22 MHz

11.05 x 4.65 x 13.46mm

HC-49

CR157/U

Thru-Hole

2.25MHz to 61 MHz

19.23 x 8.95 x 19.70mm

HC-51

CR18/U

Thru-Hole

2.25MHz to 20MHz

19.23 x 8.95 x 19.70mm

HC-48

CR19/U

Thru-Hole

2.25MHz to 20MHz

19.23 x 8.95 x 19.70mm

HC-48

CR27/U

Thru-Hole

2.25MHz to 20MHz

19.23 x 8.95 x 19.70mm

HC-48

CR28/U

Thru-Hole

2.25MHz to 20MHz

19.23 x 8.95 x 19.70mm

HC-48

CR35/U

Thru-Hole

2.25MHz to 20MHz

19.23 x 8.95 x 19.70mm

HC-48

CR36/U

Thru-Hole

2.25MHz to 20MHz

19.23 x 8.95 x 19.70mm

HC-48

CR55/U

Thru-Hole

17MHz to 62 MHz

11.05 x 4.65 x 13.46mm

HC-49

CR60/U

Thru-Hole

5MHz to 20 MHz

11.05 x 4.65 x 13.46mm

HC-49

CR61/U

Thru-Hole

17MHz to 61 MHz

11.05 x 4.65 x 13.46mm

HC-49

CR62/U

Thru-Hole

2.25MHz to 20 MHz

19.23 x 8.95 x 19.70mm

HC-48

CR64/U

Thru-Hole

2.4MHz to 20 MHz

11.05 x 4.65 x 13.46mm

HC-49

CR67/U

Thru-Hole

17MHz to 62 MHz

11.05 x 4.65 x 13.46mm

HC-49

CR69/U

Thru-Hole

2.9MHz to 25 MHz

11.05 x 4.65 x 13.46mm

HC-49

CR72/U

Thru-Hole

17MHz to 61 MHz

11.05 x 4.65 x 13.46mm

HC-49

CR76/U

Thru-Hole

16MHz to 61 MHz

11.05 x 4.65 x 13.46mm

HC-49

CR77/U

Thru-Hole

17MHz to 62 MHz

11.05 x 4.65 x 13.46mm

HC-50

CR78/U

Thru-Hole

2.2MHz to 20 MHz

11.05 x 4.65 x 13.46mm

HC-50

CR79/U

Thru-Hole

2.9MHz to 20 MHz

11.05 x 4.65 x 13.46mm

HC-50

CR81/U

Thru-Hole

17MHz to 61 MHz

11.05 x 4.65 x 13.46mm

HC-50

CR84/U

Thru-Hole

16MHz to 61 MHz

11.05 x 4.65 x 13.46mm

HC-50

CR85/U

Thru-Hole

2.25MHz to 20 MHz

19.23 x 8.95 x 19.70mm

HC-48

CR89/U

Thru-Hole

2.25 MHz to 6.2 MHz

11.05 x 4.65 x 13.46mm

HC-50

CR97/U

Thru-Hole

8 MHz to 10 MHz

11.05 x 4.65 x 13.46mm

HC-49

FP

10.7MHz to 200MHz

Both

-55 to +125°C

Yes

HA

10.7MHz to 200MHz

PTH

-55 to +125°C

Yes

HA x 2

10.7MHz to 200MHz

PTH

-55 to +125°C

Yes

S1

10.7MHz to 200MHz

SMD

-55 to +125°C

Yes

S2

10.7MHz to 200MHz

SMD

-55 to +125°C

Yes

S3

10.7MHz to 200MHz

SMD

-55 to +125°C

Yes

S4

10.7MHz to 200MHz

SMD

-55 to +125°C

Yes

S5

10.7MHz to 200MHz

SMD

-55 to +125°C

SC

10.7MHz to 200MHz

PTH

-55 to +125°C

Yes

SP

10.7MHz to 200MHz

SMD

-55 to +125°C

Yes

T2

10.7MHz to 200MHz

PTH

-55 to +125°C

Yes

U1

10.7MHz to 200MHz

Both

-55 to +125°C

Yes

U1 x 2

10.7MHz to 200MHz

PTH

-55 to +125°C

Yes

U1 x 3

10.7MHz to 200MHz

PTH

-55 to +125°C

Yes

LV5

SMD
Seam
Welded

LVDS

40MHz to 200MHz

5.00mm x 3.20mm x 1.20mm

LV7

SMD
Seam
Welded

LVDS

40MHz to 200MHz

7.0mm x 5.0mm x 1.8mm

O08

DIP8

TTL/CMOS
LVCMOS

30KHz to 200MHz

13.2mm x 13.2mm x 5.6mm

O14

DIP14

TTL/CMOS
LVCMOS

30KHz to 200MHz

20.4mm x 12.8mm x 5.08mm

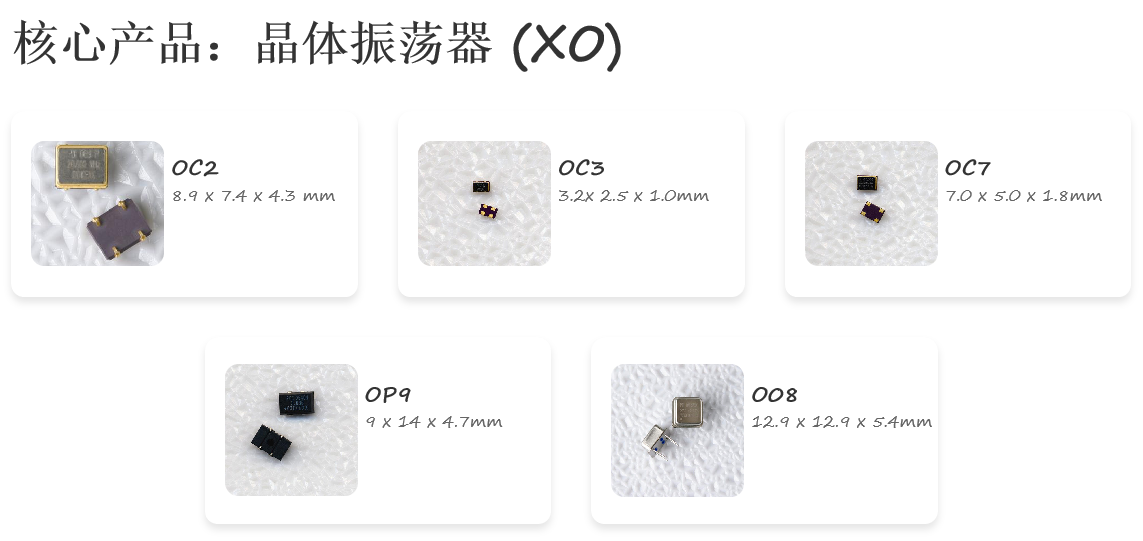

OC2

SMD
Seam
Welded

TTL/CMOS
LVCMOS

30KHz to 50MHz

2.5mm x 2.0mm x 1.0mm

OC3

SMD
Seam
Welded

TTL/CMOS
LVCMOS

30KHz to 80MHz

3.2mm x 2.5mm x 1.0mm

OC5

SMD
Seam
Welded

TTL/CMOS
LVCMOS

30KHz to 200MHz

5.0mm x 3.2mm x 1.3mm

OC7

SMD
Seam
Welded

TTL/CMOS
LVCMOS

30KHz to 200MHz

7.0 x 5.0 x 1.8mm

PE5

SMD
Seam
Welded

LVPECL

40MHz to 200MHz

5.0mm x 3.2mm x 1.2mm

PE7

SMD
Seam
Welded

LVPECL

40MHz to 200MHz

7.0 x 5.0 x 1.8mm

DH-1

Ceramic SMD

CMOS

32.768 KHz

7.86mm x 3.60mm x 2.00mm

DL-4

Ceramic J-Lead

LVCMOS

0.5MHz - 80MHz

8.89mm x 7.37mm x 4.32mm

FC7

SMD Seam Weld

LVCMOS
LVDS
LVPECL

10MHz to 1GHz

7.0mm x5.0mm x1.8mm

JC7

J Lead
Gull Wing
Thru Hole

TTL/CMOS
LVCMOS
HCMOS

30KHz - 200MHz

7.0mm x 5.0mm x 1.6mm

JL9

Ceramic
J-Lead

TTL/CMOS
LVCMOS
HCMOS

30KHz - 200MHz

14mm x 9mm x 4.7 mm

JL4

Ceramic
J-Lead

TTL/CMOS
LVCMOS

30KHz - 200MHz

8.9mm x 7.4mm x 4.3 mm

FC3

LVCMOS, LVDS or LVPECL

10MHz to 1.5GHz

3.2 x 2.5 x 1.0 mm

6-Pin, Low Jitter and Phase Noise

FC5

LVCMOS, LVDS or LVPECL

10MHz to 1.5GHz

5.0 x 3.2 x 1.3 mm

6-Pin, Low Jitter and Phase Noise

FC7

LVCMOS, LVDS or LVPECL

10MHz to 1.5GHz

7.0 x 5.0 x 1.90 mm

6-Pin, Low Jitter and Phase Noise

FV3

LVCMOS, LVDS or LVPECL

10MHz to 1.5GHz

3.2 x 2.5 x 1.0 mm

Ultra-Low Jitter & Power

FV5

LVCMOS, LVDS or LVPECL

10MHz to 1.5GHz

5.0 x 3.2 x 1.3 mm

Ultra-Low Jitter & Power

FV7

LVCMOS, LVDS or LVPECL

10MHz to 1.5GHz

7.0 x 5.0 x 1.90 mm

Ultra-Low Jitter & Power

MIL-55310/08

TTL

750kHz to 50MHz

0.887L x 0.540W x 0.200H in

14-Pin

MIL-55310/09

TTL

750kHz to 60MHz

0.410D x 0.300H in

TO-5

MIL-55310/14

TTL

750kHz to 25MHz

0.887L x 0.540W x 0.200H in

14-Pin

MIL-55310/16

TTL

750kHz to 60MHz

0.887L x 0.540W x 0.200H in
0.887L x 0.540W x 0.265H in

14-Pin

MIL-55310/17

TTL

12MHz to 50MHz

0.887L x 0.540W x 0.200H in

14-Pin

MIL-55310/18

CMOS

0.1Hz to 15MHz

0.887L x 0.540W x 0.200H in

14-Pin

MIL-55310/19

TTL

1MHZ to 60MHZ

0.480L x 0.480W x 0.085H in

40-Pin

MIL-55310/21

TTL

1MHZ to 60MHZ

0.650L x 0.650W x 0.120H in

20-Pin

MIL-55310/25

ECL

25MHz to 60MHz

0.887L x 0.540W x 0.200H in
0.815L x 0.515W x 0.200H in

14-Pin

MIL-55310/26

CMOS

15kHz to 60MHz

0.887L x 0.540W x 0.200H in
0.815L x 0.515W x 0.200H in

14-Pin
4-Pin

MIL-55310/30

LVCMOS

1.54MHz to 100MHz

0.560L x 0.360W x 0.188H in

4-Pin

VN01

Thru-Hole

SINEWAVE into 50ohms

5MHz to 100Mhz

35.5 x 25.4 mm

VN03

Thru-Hole

SINEWAVE into 50ohms

5MHz to 100Mhz

25.4 x 25.4 mm

VN04

Thru-Hole, Gull Wing

HCMOS / LVCMOS

10MHz to 50MHz

20.20L x 12.52W x 7.80H mm

VN05

SMD

TTL / CMOS / SINEWAVE

10MHz to 50MHz

25.4L x 22W mm

Type/Series


Output

Frequency Range

Dimensions

Spec File

Features

FP1

CMOS
LVCMOS
LVDS
LVPECL

750KHz to 850MHz

25.35 x 35.31 x 5.33mm

24-Pin

FP2

CMOS
LVCMOS
LVDS
LVPECL

750KHz to 800MHz

16.51 x 16.51 x 4.5mm

20-Pin

FP4

CMOS
LVCMOS
LVDS
LVPECL

750KHz to 800MHz

20.6 x 20.6 x 10.49mm

14-Pin

FP6

CMOS
LVCMOS
LVDS
LVPECL

750KHz to 800MHz

24.4 x 25.4 x 4.45mm

16-Pin

JS4

LVCMOS

750KHz to 200MHz

0.9 x 7.4 x 4.3mm

TV02

Clipped Sine

10MHz to 52MHz

2.5 x 2.0 x 0.8mm

Small Footprint
1.8 to 3.3 V supply available

TV03

Clipped Sine

10MHz to 52MHz

3.2 x 2.5 x 1.0mm

Small Footprint
1.8 to 3.3 V supply available

TV05

TTL/CMOS LVCMOS Clipped Sine

10MHz to 52MHz

5.0 x 3.2 x 1.5mm

5V Available
Multiple Output Types

TV07

TTL/CMOS LVCMOS Clipped Sine

8MHz to 52MHz

7.0 x 5.0 x 2.3mm

5V Available
Multiple Output Types

TC02

Clipped Sine

10MHz to 52MHz

2.5 x 2.0 x .9mm

Small Footprint
1.8 to 3.3 Vsupply available

TC03

Clipped Sine

10MHz to 52MHz

3.2 x 2.5 x 1.0mm

Small Footprint
1.8 to 3.3 Vsupply available

TC05

TTL/CMOS LVCMOS Clipped Sine

10MHz to 52MHz

5.0 x 3.2 x 1.5mm

5V Available
Multiple Output Types

TC07

TTL/CMOS LVCMOS Clipped Sine

8.0.MHz to 52.0MHz

7.0 x 5.0 x 2.3mm

5V Available
Multiple Output Types

TLT3

CMOS

32.768KHz

3.28 x 2.50 x 1.30mm

VC05

HCMOS TTL

1.0MHz to 125.0MHz

5.0mm x 3.2mm

Ceramic

VC07

HCMOS TTL

10MHz to 250MHz

5.0 x 7.0mm

Ceramic,Low Jitter,Low Profile

VC29

HCMOS PECL TTL

4.0MHz to 100.0Mhz

14.0 x 9.6 x 6.4mm

Low Jitter,Low Profile

VC40

LVDS LVPECL

60.0MHz to 800.0MHz

14.0 x 9.6 x 6.4mm

Low Profile

FP

10.7MHz to 200MHz

Both

-55 to +125°C

Yes

HA

10.7MHz to 200MHz

PTH

-55 to +125°C

Yes

HA x 2

10.7MHz to 200MHz

PTH

-55 to +125°C

Yes

S1

10.7MHz to 200MHz

SMD

-55 to +125°C

Yes

S2

10.7MHz to 200MHz

SMD

-55 to +125°C

Yes

S3

10.7MHz to 200MHz

SMD

-55 to +125°C

Yes

S4

10.7MHz to 200MHz

SMD

-55 to +125°C

Yes

S5

10.7MHz to 200MHz

SMD

-55 to +125°C

SC

10.7MHz to 200MHz

PTH

-55 to +125°C

Yes

SP

10.7MHz to 200MHz

SMD

-55 to +125°C

Yes

T2

10.7MHz to 200MHz

PTH

-55 to +125°C

Yes

U1

10.7MHz to 200MHz

Both

-55 to +125°C

Yes

U1 x 2

10.7MHz to 200MHz

PTH

-55 to +125°C

Yes

U1 x 3

10.7MHz to 200MHz

PTH

-55 to +125°C

Yes

SAW Filter

800 MHz to 2400 MHz

0.3% to 35%

10dB min

10mW max

CERAMIC Filter

500 MHz to 2400 MHz

0.1% to 10%

15dB min

1W

Cavity Filter

400 MHz to 20 GHz

.5 to 60%

14dB min

10W

LC Filter

500 kHz to 3.5 GHz

1 to 100%

14dB min

1W
