SG5032EAN SG5032VAN差分晶振稳控多媒体设备每一刻

文章出处：https://www.smdxtal.com/
责任编辑：加科电子
人气：28
发表时间：2025-12-01

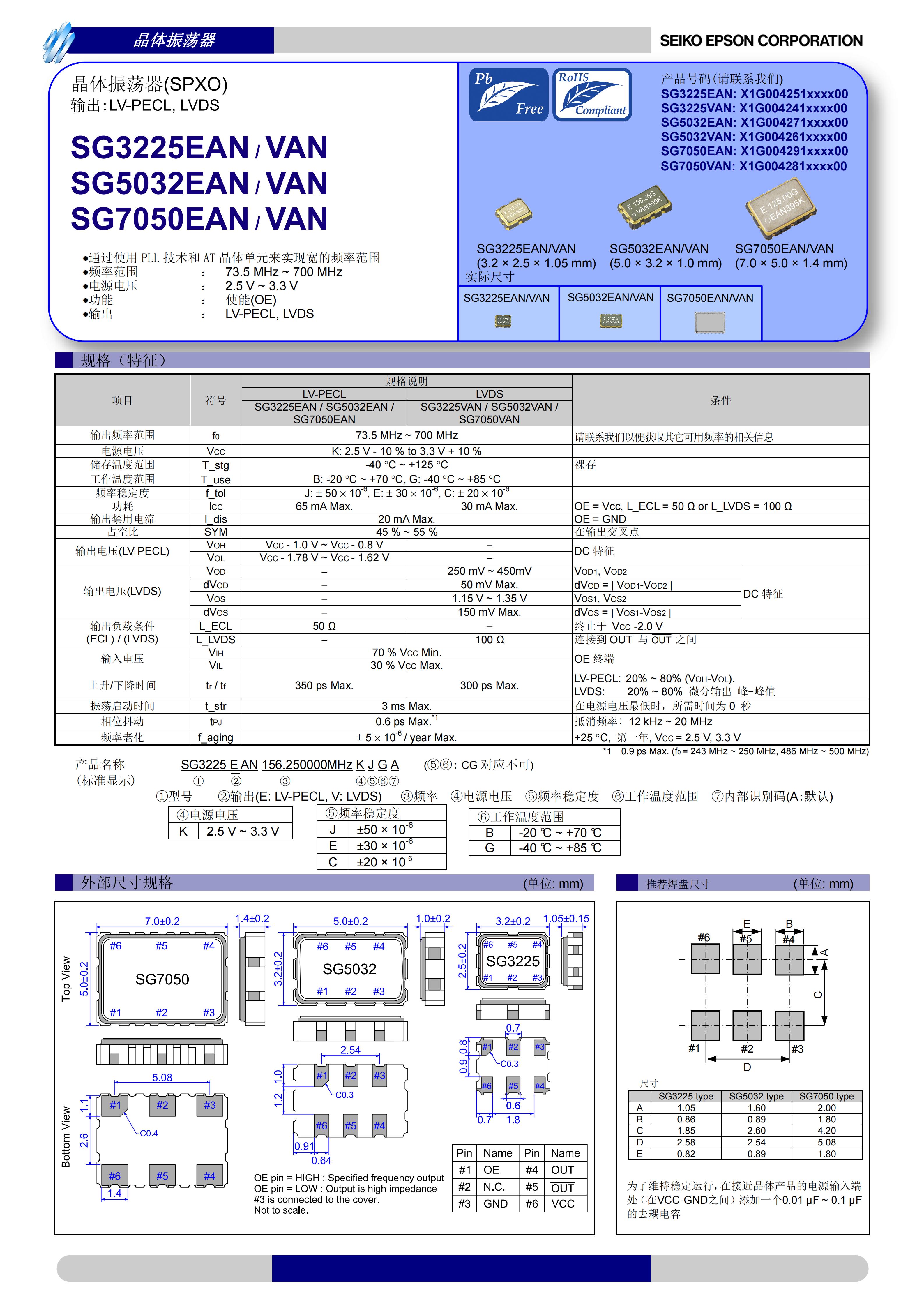

在汽车电子,工业控制,5G通信等对精度与可靠性要求近乎苛刻的领域里,一颗晶振的稳定性往往决定着整个系统的命运EPSON爱普生晶振推出的SG5032EAN与SG5032VAN差分晶振凭借其,超宽频,超低温漂,超快响应,超低功耗的四大核心优势成为高端电子设备中不可或缺的频率心脏为智能时代的关键应用提供稳如磐石的支撑,SG5032EAN与SG5032VAN支持73.5MHz至700MHz的宽频率范围,通过PLL技术与AT晶体单元实现灵活调频,满足汽车多媒体,引擎控制设备,安全气囊等复杂系统的需求SG5032EAN采用LVPECL输出,SG5032VAN则支持LVDS输出6引脚封装设计紧凑适配多种电路布局,SG5032EAN与SG5032VAN晶振最大仅0.6ps（皮秒）相位噪声极低信号纯净度达到行业顶尖水平有效避免数据传输中的误码与丢包为高速通信与精密控制保驾护航。

料号	型号	频率	输出	电压	工作温度	精度
X1G004271011900	SG5032EAN	174.703125MHz	LVPECL	2.25 to 3.63V	-20°C ~ 70°C	20PPM
SG5032EAN 125.000000M-KCBAB	SG5032EAN	125MHz	LVPECL	2.5V ~ 3.3V	-20°C ~ 70°C	20PPM
SG5032EAN 174.703125M-KCBA3	SG5032EAN	174.703125MHz	LVPECL	2.5V ~ 3.3V	-20°C ~ 70°C	20PPM
SG5032EAN 174.703125M-KCBAB	SG5032EAN	174.703125MHz	LVPECL	2.5V ~ 3.3V	-20°C ~ 70°C	20PPM
SG5032EAN 400.000000M-KCBA3	SG5032EAN	400MHz	LVPECL	2.5V ~ 3.3V	-20°C ~ 70°C	20PPM
SG5032EAN 400.000000M-KCBAB	SG5032EAN	400MHz	LVPECL	2.5V ~ 3.3V	-20°C ~ 70°C	20PPM
SG5032EAN 174.703125MHz KCBA	SG5032EAN	174.703125MHz	LVPECL	2.25 to 3.63V	-20°C ~ 70°C	20PPM
SG5032EAN 156.250000MHz KEGA	SG5032EAN	156.25MHz	LVPECL	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032EAN 250.000000MHz KEGA	SG5032EAN	250MHz	LVPECL	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
X1G004271002000	SG5032EAN	125MHz	LVPECL	2.25 to 3.63V	-40°C ~ 85°C	30PPM
X1G004271011600	SG5032EAN	133.33MHz	LVPECL	2.25 to 3.63V	-40°C ~ 85°C	30PPM
X1G004271011800	SG5032EAN	133.333MHz	LVPECL	2.25 to 3.63V	-40°C ~ 85°C	30PPM
X1G004271012100	SG5032EAN	161.132813MHz	LVPECL	2.25 to 3.63V	-40°C ~ 85°C	30PPM
X1G004271012200	SG5032EAN	425MHz	LVPECL	2.25 to 3.63V	-40°C ~ 85°C	30PPM
X1G004271012300	SG5032EAN	500MHz	LVPECL	2.25 to 3.63V	-40°C ~ 85°C	30PPM
SG5032EAN 106.250000M-KEGAB	SG5032EAN	106.25MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032EAN 156.250000M-KEGA0	SG5032EAN	156.25MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032EAN 156.250000M-KEGAB	SG5032EAN	156.25MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032EAN 161.132813M-KEGA3	SG5032EAN	161.132813MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032EAN 161.132800M-KEGA3	SG5032EAN	161.1328MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032EAN 161.132800M-KEGAB	SG5032EAN	161.1328MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032EAN 75.000000M-KEGA3	SG5032EAN	75MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032EAN 75.000000M-KEGAB	SG5032EAN	75MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032EAN 156.25MHz KEGA	SG5032EAN	156.25MHz	LVPECL	2.25 to 3.63V	-40°C ~ 85°C	30PPM
X1G004271003300	SG5032EAN	156.25MHz	LVPECL	2.25 to 3.63V	-40°C ~ 85°C	30PPM
SG5032EAN 250MHz KEGA	SG5032EAN	250MHz	LVPECL	2.25 to 3.63V	-40°C ~ 85°C	30PPM
X1G004271010900	SG5032EAN	250MHz	LVPECL	2.25 to 3.63V	-40°C ~ 85°C	30PPM
SG5032EAN 100.000000M-KEGA3	SG5032EAN	100MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032EAN 106.250000M-KEGA3	SG5032EAN	106.25MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032EAN 114.285000M-KEGA3	SG5032EAN	114.285MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032EAN 125.000000M-KEGA3	SG5032EAN	125MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032EAN 150.000000M-KEGA3	SG5032EAN	150MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032EAN 155.520000M-KEGA3	SG5032EAN	155.52MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032EAN 156.250000M-KEGA3	SG5032EAN	156.25MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032EAN 200.000000M-KEGA3	SG5032EAN	200MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032EAN 212.500000M-KEGA3	SG5032EAN	212.5MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032EAN 250.000000M-KEGA3	SG5032EAN	250MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032EAN 312.500000M-KEGA3	SG5032EAN	312.5MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032EAN 350.000000M-KEGA3	SG5032EAN	350MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032EAN 400.000000M-KEGA3	SG5032EAN	400MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032EAN 80.000000M-KEGA3	SG5032EAN	80MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032EAN 98.304000M-KEGA3	SG5032EAN	98.304MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032EAN 500.000000MHz KEGA	SG5032EAN	500MHz	LVPECL	2.25 to 3.63V	-40°C ~ 85°C	30PPM
SG5032EAN 125.000000MHz KEGA	SG5032EAN	125MHz	LVPECL	2.25 to 3.63V	-40°C ~ 85°C	30PPM
SG5032EAN 133.330000MHz KEGA	SG5032EAN	133.33MHz	LVPECL	2.25 to 3.63V	-40°C ~ 85°C	30PPM
SG5032EAN 133.333000MHz KEGA	SG5032EAN	133.333MHz	LVPECL	2.25 to 3.63V	-40°C ~ 85°C	30PPM
SG5032EAN 161.132813MHz KEGA	SG5032EAN	161.132813MHz	LVPECL	2.25 to 3.63V	-40°C ~ 85°C	30PPM
SG5032EAN 425.000000MHz KEGA	SG5032EAN	425MHz	LVPECL	2.25 to 3.63V	-40°C ~ 85°C	30PPM
SG5032EAN 114.285000MHz KJBA	SG5032EAN	114.285MHz	LVPECL	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032EAN 133.330000MHz KJBA	SG5032EAN	133.33MHz	LVPECL	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032EAN 150.000000MHz KJGA	SG5032EAN	150MHz	LVPECL	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032EAN 156.250000MHz KJGA	SG5032EAN	156.25MHz	LVPECL	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032EAN 114.285MHz KJBA	SG5032EAN	114.285MHz	LVPECL	2.25 to 3.63V	-20°C ~ 70°C	50PPM
X1G004271010700	SG5032EAN	114.285MHz	LVPECL	2.25 to 3.63V	-20°C ~ 70°C	50PPM
SG5032EAN 133.33MHz KJBA	SG5032EAN	133.33MHz	LVPECL	2.25 to 3.63V	-20°C ~ 70°C	50PPM
X1G004271011500	SG5032EAN	133.33MHz	LVPECL	2.25 to 3.63V	-20°C ~ 70°C	50PPM
X1G004271000400	SG5032EAN	100MHz	LVPECL	2.25 to 3.63V	-40°C ~ 85°C	50PPM
X1G004271000100	SG5032EAN	125MHz	LVPECL	2.25 to 3.63V	-40°C ~ 85°C	50PPM
X1G004271011700	SG5032EAN	133MHz	LVPECL	2.25 to 3.63V	-40°C ~ 85°C	50PPM
X1G004271001300	SG5032EAN	155.52MHz	LVPECL	2.25 to 3.63V	-40°C ~ 85°C	50PPM
SG5032EAN 100.000000M-KJGA3	SG5032EAN	100MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032EAN 100.000000M-KJGAB	SG5032EAN	100MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032EAN 106.250000M-KJGA3	SG5032EAN	106.25MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032EAN 106.250000M-KJGAB	SG5032EAN	106.25MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032EAN 125.000000M-KJGA3	SG5032EAN	125MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032EAN 125.000000M-KJGAB	SG5032EAN	125MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032EAN 133.330000M-KJGA0	SG5032EAN	133.33MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032EAN 150.000000M-KJGA3	SG5032EAN	150MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032EAN 150.000000M-KJGAB	SG5032EAN	150MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032EAN 155.520000M-KJGA3	SG5032EAN	155.52MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032EAN 155.520000M-KJGAB	SG5032EAN	155.52MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032EAN 156.250000M-KJGA0	SG5032EAN	156.25MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032EAN 156.250000M-KJGA3	SG5032EAN	156.25MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032EAN 156.250000M-KJGAB	SG5032EAN	156.25MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032EAN 161.132800M-KJGA3	SG5032EAN	161.1328MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032EAN 161.132800M-KJGAB	SG5032EAN	161.1328MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032EAN 200.000000M-KJGA3	SG5032EAN	200MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032EAN 200.000000M-KJGAB	SG5032EAN	200MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032EAN 212.500000M-KJGA3	SG5032EAN	212.5MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032EAN 212.500000M-KJGAB	SG5032EAN	212.5MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032EAN 25.000000M-KJGBB	SG5032EAN	25MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032EAN 312.500000M-KJGA3	SG5032EAN	312.5MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032EAN 312.500000M-KJGAB	SG5032EAN	312.5MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032EAN 75.000000M-KJGA3	SG5032EAN	75MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032EAN 75.000000M-KJGAB	SG5032EAN	75MHz	LVPECL	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032EAN 100MHz KJGA	SG5032EAN	100MHz	LVPECL	2.25 to 3.63V	-40°C ~ 85°C	50PPM
SG5032EAN 150MHz KJGA	SG5032EAN	150MHz	LVPECL	2.25 to 3.63V	-40°C ~ 85°C	50PPM
X1G004271001200	SG5032EAN	150MHz	LVPECL	2.25 to 3.63V	-40°C ~ 85°C	50PPM
SG5032EAN 156.25MHz KJGA	SG5032EAN	156.25MHz	LVPECL	2.25 to 3.63V	-40°C ~ 85°C	50PPM
X1G004271001400	SG5032EAN	156.25MHz	LVPECL	2.25 to 3.63V	-40°C ~ 85°C	50PPM
SG5032EAN 100.000000MHz KJGA	SG5032EAN	100MHz	LVPECL	2.25 to 3.63V	-40°C ~ 85°C	50PPM
SG5032EAN 125.000000MHz KJGA	SG5032EAN	125MHz	LVPECL	2.25 to 3.63V	-40°C ~ 85°C	50PPM
SG5032EAN 133.000000MHz KJGA	SG5032EAN	133MHz	LVPECL	2.25 to 3.63V	-40°C ~ 85°C	50PPM
SG5032EAN 155.520000MHz KJGA	SG5032EAN	155.52MHz	LVPECL	2.25 to 3.63V	-40°C ~ 85°C	50PPM
SG5032VAN 125.000000MHz KCBA	SG5032VAN	125MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	20PPM
SG5032VAN 125.006250MHz KCBA	SG5032VAN	125.00625MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	20PPM
SG5032VAN 100.000000MHz KCBA	SG5032VAN	100MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	20PPM
SG5032VAN 400.000000MHz KCBA	SG5032VAN	400MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	20PPM
SG5032VAN 106.250000MHz KCBA	SG5032VAN	106.25MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	20PPM
SG5032VAN 212.500000MHz KCBA	SG5032VAN	212.5MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	20PPM
SG5032VAN 74.250000MHz KCBA	SG5032VAN	74.25MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	20PPM
SG5032VAN 75.000000MHz KCBA	SG5032VAN	75MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	20PPM
SG5032VAN 312.500000MHz KCBA	SG5032VAN	312.5MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	20PPM
SG5032VAN 312.515625MHz KCBA	SG5032VAN	312.515625MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	20PPM
SG5032VAN 161.132800MHz KCBA	SG5032VAN	161.1328MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	20PPM
SG5032VAN 50.000000MHz KCBA	SG5032VAN	50MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	20PPM
SG5032VAN 68.750000MHz KCBA	SG5032VAN	68.75MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	20PPM
SG5032VAN 125.0000M-KCBA3	SG5032VAN	125MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	20PPM
SG5032VAN 125.00625M-KCBA3	SG5032VAN	125.00625MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	20PPM
SG5032VAN 100.0000M-KCBA3	SG5032VAN	100MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	20PPM
SG5032VAN 200.0000M-KCBA3	SG5032VAN	200MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	20PPM
SG5032VAN 400.0000M-KCBA3	SG5032VAN	400MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	20PPM
SG5032VAN 106.2500M-KCBA3	SG5032VAN	106.25MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	20PPM
SG5032VAN 212.5000M-KCBA3	SG5032VAN	212.5MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	20PPM
SG5032VAN 74.2500M-KCBA3	SG5032VAN	74.25MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	20PPM
SG5032VAN 148.5000M-KCBA3	SG5032VAN	148.5MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	20PPM
SG5032VAN 75.0000M-KCBA3	SG5032VAN	75MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	20PPM
SG5032VAN 150.0000M-KCBA3	SG5032VAN	150MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	20PPM
SG5032VAN 156.2500M-KCBA3	SG5032VAN	156.25MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	20PPM
SG5032VAN 312.5000M-KCBA3	SG5032VAN	312.5MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	20PPM
SG5032VAN 312.515625M-KCBA3	SG5032VAN	312.515625MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	20PPM
SG5032VAN 161.1328M-KCBA3	SG5032VAN	161.1328MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	20PPM
SG5032VAN 50.0000M-KCBA3	SG5032VAN	50MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	20PPM
SG5032VAN 68.7500M-KCBA3	SG5032VAN	68.75MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	20PPM
X1G004261013800	SG5032VAN	148.3516MHz	LVDS	2.25 to 3.63V	-20°C ~ 70°C	20PPM
X1G004261006700	SG5032VAN	148.5MHz	LVDS	2.25 to 3.63V	-20°C ~ 70°C	20PPM
X1G004261006900	SG5032VAN	150MHz	LVDS	2.25 to 3.63V	-20°C ~ 70°C	20PPM
X1G004261007100	SG5032VAN	156.25MHz	LVDS	2.25 to 3.63V	-20°C ~ 70°C	20PPM
X1G004261006200	SG5032VAN	200MHz	LVDS	2.25 to 3.63V	-20°C ~ 70°C	20PPM
SG5032VAN 156.244531M-KCBAB	SG5032VAN	156.244531MHz	LVDS	2.5V ~ 3.3V	-20°C ~ 70°C	20PPM
SG5032VAN 200.000000M-KCBA3	SG5032VAN	200MHz	LVDS	2.5V ~ 3.3V	-20°C ~ 70°C	20PPM
SG5032VAN 200.000000M-KCBAB	SG5032VAN	200MHz	LVDS	2.5V ~ 3.3V	-20°C ~ 70°C	20PPM
SG5032VAN 148.351600MHz KCBA	SG5032VAN	148.3516MHz	LVDS	2.25 to 3.63V	-20°C ~ 70°C	20PPM
SG5032VAN 148.500000MHz KCBA	SG5032VAN	148.5MHz	LVDS	2.25 to 3.63V	-20°C ~ 70°C	20PPM
SG5032VAN 150.000000MHz KCBA	SG5032VAN	150MHz	LVDS	2.25 to 3.63V	-20°C ~ 70°C	20PPM
SG5032VAN 156.250000MHz KCBA	SG5032VAN	156.25MHz	LVDS	2.25 to 3.63V	-20°C ~ 70°C	20PPM
SG5032VAN 200.000000MHz KCBA	SG5032VAN	200MHz	LVDS	2.25 to 3.63V	-20°C ~ 70°C	20PPM
SG5032VAN 125.000000MHz KEGA	SG5032VAN	125MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 125.006250MHz KEGA	SG5032VAN	125.00625MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 100.000000MHz KEGA	SG5032VAN	100MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 200.000000MHz KEGA	SG5032VAN	200MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 400.000000MHz KEGA	SG5032VAN	400MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 106.250000MHz KEGA	SG5032VAN	106.25MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 212.500000MHz KEGA	SG5032VAN	212.5MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 74.250000MHz KEGA	SG5032VAN	74.25MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 148.500000MHz KEGA	SG5032VAN	148.5MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 75.000000MHz KEGA	SG5032VAN	75MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 150.000000MHz KEGA	SG5032VAN	150MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 156.250000MHz KEGA	SG5032VAN	156.25MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 312.500000MHz KEGA	SG5032VAN	312.5MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 312.515625MHz KEGA	SG5032VAN	312.515625MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 161.132800MHz KEGA	SG5032VAN	161.1328MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 50.000000MHz KEGA	SG5032VAN	50MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 68.750000MHz KEGA	SG5032VAN	68.75MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 114.285000MHz KEGA	SG5032VAN	114.285MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 250.000000MHz KEGA	SG5032VAN	250MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 350.000000MHz KEGA	SG5032VAN	350MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 80.000000MHz KEGA	SG5032VAN	80MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 98.304000MHz KEGA	SG5032VAN	98.304MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 122.880000MHz KJGA	SG5032VAN	98.304MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 155.520000MHz KEGA	SG5032VAN	155.52MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 135.000000MHz KEGA	SG5032VAN	135MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 322.265625 MHz KEGA	SG5032VAN	322.265625MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 245.00000 MHz KEGA	SG5032VAN	245MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 125.0000M-KEGA3	SG5032VAN	125MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 125.00625M-KEGA3	SG5032VAN	125.00625MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 100.0000M-KEGA3	SG5032VAN	100MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 200.0000M-KEGA3	SG5032VAN	200MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 400.0000M-KEGA3	SG5032VAN	400MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 106.2500M-KEGA3	SG5032VAN	106.25MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 212.5000M-KEGA3	SG5032VAN	212.5MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 74.2500M-KEGA3	SG5032VAN	74.25MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 148.5000M-KEGA3	SG5032VAN	148.5MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 75.0000M-KEGA3	SG5032VAN	75MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 150.0000M-KEGA3	SG5032VAN	150MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 156.2500M-KEGA3	SG5032VAN	156.25MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 312.5000M-KEGA3	SG5032VAN	312.5MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 312.515625M-KEGA3	SG5032VAN	312.515625MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 161.1328M-KEGA3	SG5032VAN	161.1328MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 50.0000M-KEGA3	SG5032VAN	50MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 68.7500M-KEGA3	SG5032VAN	68.75MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 114.2850M-KEGA3	SG5032VAN	114.285MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 250.0000M-KEGA3	SG5032VAN	250MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 350.0000M-KEGA3	SG5032VAN	350MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 80.0000M-KEGA3	SG5032VAN	80MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 98.3040M-KEGA3	SG5032VAN	98.304MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 122.8800M-KJGA3	SG5032VAN	98.304MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 155.5200M-KEG	SG5032VAN	155.52MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	30PPM
SG5032VAN 135.0000M-KEGAB	SG5032VAN	135MHz	LVDS	2.5V ~ 3.3V	-20°C ~ 70°C	30PPM
SG5032VAN 80.000000M-KEGA3	SG5032VAN	80MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 98.304000M-KEGA3	SG5032VAN	98.304MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
X1G004261002300	SG5032VAN	100MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	30PPM
X1G004261002000	SG5032VAN	125MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	30PPM
X1G004261002100	SG5032VAN	125.00625MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	30PPM
X1G004261012900	SG5032VAN	135MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	30PPM
X1G004261013500	SG5032VAN	148.3516MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	30PPM
X1G004261002900	SG5032VAN	148.5MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	30PPM
X1G004261003100	SG5032VAN	150MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	30PPM
X1G004261003300	SG5032VAN	156.25MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	30PPM
X1G004261014100	SG5032VAN	161.132812MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	30PPM
X1G004261002400	SG5032VAN	200MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	30PPM
X1G004261010200	SG5032VAN	250MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	30PPM
X1G004261003400	SG5032VAN	312.5MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	30PPM
X1G004261013100	SG5032VAN	322.265625MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	30PPM
X1G004261002500	SG5032VAN	400MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	30PPM
X1G004261014300	SG5032VAN	625MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	30PPM
X1G004261013600	SG5032VAN	644.53125MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	30PPM
SG5032VAN 100.000000M-KEGA0	SG5032VAN	100MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 106.2500000M-KEGA3	SG5032VAN	106.25MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 125.000000M-KEGA0	SG5032VAN	125MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 125.000000M-KEGAB	SG5032VAN	125MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 148.500000M-KEGA3	SG5032VAN	148.5MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 148.500000M-KEGAB	SG5032VAN	148.5MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 156.250000M-KEGAB	SG5032VAN	156.25MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 200.000000M-KEGA0	SG5032VAN	200MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 200.000000M-KEGAB	SG5032VAN	200MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 250.000000M-KEGA0	SG5032VAN	250MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 250.000000M-KEGAB	SG5032VAN	250MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 312.500000M-KEGAB	SG5032VAN	312.5MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 322.265625M-KEGA0	SG5032VAN	322.265625MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 322.265625M-KEGA3	SG5032VAN	322.265625MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 322.265625M-KEGAB	SG5032VAN	322.265625MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 400.000000M-KEGA0	SG5032VAN	400MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 400.000000M-KEGAB	SG5032VAN	400MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 50.000000M-KEGAB	SG5032VAN	50MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 74.250000M-KEGA3	SG5032VAN	74.25MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 74.250000M-KEGAB	SG5032VAN	74.25MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 75.000000M-KEGA3	SG5032VAN	75MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 75.000000M-KEGAB	SG5032VAN	75MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 78.125000M-KEGAB	SG5032VAN	78.125MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 100.000000M-KEGA3	SG5032VAN	100MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 106.250000M-KEGA3	SG5032VAN	106.25MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 114.285000M-KEGA3	SG5032VAN	114.285MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 125.000000M-KEGA3	SG5032VAN	125MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 150.000000M-KEGA3	SG5032VAN	150MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 155.520000M-KEGA3	SG5032VAN	155.52MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 156.250000M-KEGA3	SG5032VAN	156.25MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 200.000000M-KEGA3	SG5032VAN	200MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 212.500000M-KEGA3	SG5032VAN	212.5MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 250.000000M-KEGA3	SG5032VAN	250MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 312.500000M-KEGA3	SG5032VAN	312.5MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 350.000000M-KEGA3	SG5032VAN	350MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 400.000000M-KEGA3	SG5032VAN	400MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	30PPM
SG5032VAN 148.351600MHz KEGA	SG5032VAN	148.3516MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	30PPM
SG5032VAN 322.265625MHz KEGA	SG5032VAN	322.265625MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	30PPM
SG5032VAN 625.000000MHz KEGA	SG5032VAN	625MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	30PPM
SG5032VAN 644.531250MHz KEGA	SG5032VAN	644.53125MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	30PPM
SG5032VAN 125.000000MHz KJBA	SG5032VAN	125MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 125.006250MHz KJBA	SG5032VAN	125.00625MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 100.000000MHz KJBA	SG5032VAN	100MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 400.000000MHz KJBA	SG5032VAN	400MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 106.250000MHz KJBA	SG5032VAN	106.25MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 212.500000MHz KJBA	SG5032VAN	212.5MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 74.250000MHz KJBA	SG5032VAN	74.25MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 148.500000MHz KJBA	SG5032VAN	148.5MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 75.000000MHz KJBA	SG5032VAN	75MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 150.000000MHz KJBA	SG5032VAN	150MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 156.250000MHz KJBA	SG5032VAN	156.25MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 312.500000MHz KJBA	SG5032VAN	312.5MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 312.515625MHz KJBA	SG5032VAN	312.515625MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 161.132800MHz KJBA	SG5032VAN	161.1328MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 50.000000MHz KJBA	SG5032VAN	50MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 68.750000MHz KJBA	SG5032VAN	68.75MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 125.0000M-KJBA3	SG5032VAN	125MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 125.00625M-KJBA3	SG5032VAN	125.00625MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 100.0000M-KJBA3	SG5032VAN	100MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 200.0000M-KJBA3	SG5032VAN	200MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 400.0000M-KJBA3	SG5032VAN	400MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 106.2500M-KJBA3	SG5032VAN	106.25MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 212.5000M-KJBA3	SG5032VAN	212.5MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 74.2500M-KJBA3	SG5032VAN	74.25MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 148.5000M-KJBA3	SG5032VAN	148.5MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 75.0000M-KJBA3	SG5032VAN	75MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 150.0000M-KJBA3	SG5032VAN	150MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 156.2500M-KJBA3	SG5032VAN	156.25MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 312.5000M-KJBA3	SG5032VAN	312.5MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 312.515625M-KJBA3	SG5032VAN	312.515625MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 161.1328M-KJBA3	SG5032VAN	161.1328MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 50.0000M-KJBA3	SG5032VAN	50MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 68.7500M-KJBA3	SG5032VAN	68.75MHz	LVDS	2.25 to 3.63 V	-20°C ~ 70°C	50PPM
SG5032VAN 100.000000MHz KJGA	SG5032VAN	100MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 125.000000MHz KJGA	SG5032VAN	125MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 125.006250MHz KJGA	SG5032VAN	125.00625MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 200.000000MHz KJGA	SG5032VAN	200MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 156.250000MHz KJGA	SG5032VAN	156.25MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 400.000000MHz KJGA	SG5032VAN	400MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 106.250000MHz KJGA	SG5032VAN	106.25MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 212.500000MHz KJGA	SG5032VAN	212.5MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 74.250000MHz KJGA	SG5032VAN	74.25MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 148.500000MHz KJGA	SG5032VAN	148.5MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 75.000000MHz KJGA	SG5032VAN	75MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 150.000000MHz KJGA	SG5032VAN	150MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 312.500000MHz KJGA	SG5032VAN	312.5MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 312.515625MHz KJGA	SG5032VAN	312.5MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 161.132800MHz KJGA	SG5032VAN	161.1328MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 50.000000MHz KJGA	SG5032VAN	50MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 68.750000MHz KJGA	SG5032VAN	68.75MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 153.600000MHz KJGA	SG5032VAN	153.6MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 307.200000MHz KJGA	SG5032VAN	307.2MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 614.400000MHz KJGA	SG5032VAN	614.4MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 78.1250000 MHz KJGA	SG5032VAN	78.125MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 100.0000M-KJGA3	SG5032VAN	100MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 125.0000M-KJGA3	SG5032VAN	125MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 125.00625M-KJGA3	SG5032VAN	125.00625MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 200.0000M-KJGA3	SG5032VAN	200MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 156.2500M-KJGA3	SG5032VAN	156.25MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 400.0000M-KJGA3	SG5032VAN	400MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 106.2500M-KJGA3	SG5032VAN	106.25MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 212.5000M-KJGA3	SG5032VAN	212.5MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 74.2500M-KJGA3	SG5032VAN	74.25MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 148.5000M-KJGA3	SG5032VAN	148.5MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 75.0000M-KJGA3	SG5032VAN	75MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 150.0000M-KJGA3	SG5032VAN	150MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 312.5000M-KJGA3	SG5032VAN	312.5MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 312.515625M-KJGA3	SG5032VAN	312.5MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 161.1328M-KJGA3	SG5032VAN	161.1328MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 50.0000M-KJGA3	SG5032VAN	50MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 68.7500M-KJGA3	SG5032VAN	68.75MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 153.6000M-KJGA3	SG5032VAN	153.6MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 307.2000M-KJGA3	SG5032VAN	307.2MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
SG5032VAN 614.4000M-KJG	SG5032VAN	614.4MHz	LVDS	2.25 to 3.63 V	-40°C ~ 85°C	50PPM
X1G004261004300	SG5032VAN	200MHz	LVDS	2.25 to 3.63V	-20°C ~ 70°C	50PPM
SG5032VAN 156.2500M-KJBAB	SG5032VAN	156.25MHz	LVDS	2.5V ~ 3.3V	-20°C ~ 70°C	50PPM
SG5032VAN 200.000000MHz KJBA	SG5032VAN	200MHz	LVDS	2.25 to 3.63V	-20°C ~ 70°C	50PPM
X1G004261000100	SG5032VAN	100MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	50PPM
X1G004261011900	SG5032VAN	120MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	50PPM
X1G004261000200	SG5032VAN	125MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	50PPM
X1G004261012600	SG5032VAN	133.3333MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	50PPM
X1G004261012500	SG5032VAN	148.3516MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	50PPM
X1G004261001100	SG5032VAN	148.5MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	50PPM
X1G004261001300	SG5032VAN	150MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	50PPM
X1G004261010700	SG5032VAN	153.6MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	50PPM
X1G004261001400	SG5032VAN	155.52MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	50PPM
X1G004261000600	SG5032VAN	156.25MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	50PPM
X1G004261000500	SG5032VAN	200MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	50PPM
X1G004261013300	SG5032VAN	230MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	50PPM
X1G004261012800	SG5032VAN	250MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	50PPM
X1G004261012100	SG5032VAN	644.53125MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	50PPM
X1G004261011400	SG5032VAN	78.125MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	50PPM
SG5032VAN 100.000000M-KJGA3	SG5032VAN	100MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 100.000000M-KJGAB	SG5032VAN	100MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 106.250000M-KJGA3	SG5032VAN	106.25MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 106.250000M-KJGAB	SG5032VAN	106.25MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 125.000000M-KJGA3	SG5032VAN	125MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 125.000000M-KJGAB	SG5032VAN	125MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 133.333300M-KJGA3	SG5032VAN	133.3333MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 133.333300M-KJGAB	SG5032VAN	133.3333MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 148.500000M-KJGA3	SG5032VAN	148.5MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 148.500000M-KJGAB	SG5032VAN	148.5MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 150.000000M-KJGA3	SG5032VAN	150MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 150.000000M-KJGAB	SG5032VAN	150MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 155.520000M-KJGA3	SG5032VAN	155.52MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 155.520000M-KJGAB	SG5032VAN	155.52MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 156.250000M-KJGA0	SG5032VAN	156.25MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 156.250000M-KJGA3	SG5032VAN	156.25MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 156.250000M-KJGAB	SG5032VAN	156.25MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 200.000000M-KJGA3	SG5032VAN	200MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 200.000000M-KJGAB	SG5032VAN	200MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 212.500000M-KJGA3	SG5032VAN	212.5MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 212.500000M-KJGAB	SG5032VAN	212.5MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 300.000000M-KJGA3	SG5032VAN	300MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 300.000000M-KJGAB	SG5032VAN	300MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 312.500000M-KJGA3	SG5032VAN	312.5MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 312.500000M-KJGAB	SG5032VAN	312.5MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 400.000000M-KJGA3	SG5032VAN	400MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 400.000000M-KJGAB	SG5032VAN	400MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 50.000000M-KJGBB	SG5032VAN	50MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 644.531250M-KJGA0	SG5032VAN	644.53125MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 74.250000M-KJGA3	SG5032VAN	74.25MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 74.250000M-KJGAB	SG5032VAN	74.25MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 75.000000M-KJGA3	SG5032VAN	75MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 75.000000M-KJGAB	SG5032VAN	75MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 78.125000M-KJGAB	SG5032VAN	78.125MHz	LVDS	2.5V ~ 3.3V	-40°C ~ 85°C	50PPM
SG5032VAN 120.000000MHz KJGA	SG5032VAN	120MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	50PPM
SG5032VAN 133.333300MHz KJGA	SG5032VAN	133.3333MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	50PPM
SG5032VAN 148.351600MHz KJGA	SG5032VAN	148.3516MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	50PPM
SG5032VAN 230.000000MHz KJGA	SG5032VAN	230MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	50PPM
SG5032VAN 250.000000MHz KJGA	SG5032VAN	250MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	50PPM
SG5032VAN 644.531250MHz KJGA	SG5032VAN	644.53125MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	50PPM
SG5032VAN 78.125000MHz KJGA	SG5032VAN	78.125MHz	LVDS	2.25 to 3.63V	-40°C ~ 85°C	50PPM

日本EPSON爱普生SG5032EAN与SG5032VAN差分晶振的LVDS,LVPECL输出,±20ppm超低温漂,十年老化率仅±5ppm,工作温度范围:B级:-20°C+70°C覆盖常规环境,G级:-40°C+85°C直面极寒极热,存储温度更达-40°C+125°C无惧南北极科考沙漠勘探等极端场景,频率公差:J级±50ppm,E级±30ppm,C级±20ppm,精准分级满足不同需求其中C级精度媲美温度补偿晶振（TCXO）,却无需复杂电路设计,SG5032EAN与SG5032VAN差分晶振年老化率:25°C,3.3V条件下首年仅±5ppm十年使用仍能保持频率偏差在极小范围内为长期运行的设备提供可靠保障,SG5032EAN与SG5032VAN差分晶振极速响应3ms启动,0.6ps超低抖动信号传输零延迟,在最小工作电压（Vcc Min.）下≤3ms即可进入稳定振荡状态比传统晶振快3倍以上确保设备开机即用无需漫长等待。

SG5032EAN与SG5032VAN差分EPSON晶振65mA低功耗,20mA关断电流续航与环保双赢,SG5032EAN与SG5032VAN晶振OE使能端接Vcc,输出负载50Ω时仅65mA远低于同类产品,此外SG5032EAN与SG5032VAN晶振OE接GND时电流低至20mA待机功耗几乎可忽略显著延长设备续航时间,日本爱普生SG5032EAN与SG5032VAN差分进口晶振全系列采用无铅材料符合RoHS标准从生产到使用全程绿色无污染,SG5032EAN输出模式LVPECL适合高速差分信号传输抗干扰能力强,SG5032VAN输出模式LVDS低电压摆幅,功耗更低,适配低功耗场景,SG5032EAN与SG5032VAN晶振封装尺寸仅为5.0×3.2×1.60mm,可轻松嵌入空间受限的电路板,SG5032VAN晶振用于汽车电子引擎控制单元（ECU）安全气囊,电子稳定程序（ESP）遥控无钥匙门锁（RKE）车身电子模块。

返回列表

联系方式

0755-33533774
jiakedz@163.com
深圳市宝安区宝民一路宝通大厦2305

微信
QQ

2020824082
邮箱

jiakedz@163.com
电话

15602443498（黄河）
座机

0755-33533774

SG5032EAN SG5032VAN差分晶振稳控多媒体设备每一刻

相关推荐

联系方式

晶振分类

品牌优势

新闻中心

公司介绍
